Which model to choose?
You don't know which model to choose or you're still hesitating between the GTS 120/170 and the GTS 180/170.
This summary table will help you to understand the main differences between these two models and helps you to make the right choice.
Do not hesitate to contact us for further information. We will be happy to advise you and help you with your concerns.
| Model | GTS 120/170 | GTS 180/170 |
| Material (gate closer) | aluminium | aluminium |
| Colour | anodized aluminium | anodized aluminium, antracite (RAL 7016), green (RAL 6005), black (RAL 9005) |
| Force | 120N | 180N |
| Hub | 170 mm | 180 mm |
| Closing speed | about 10 sec | about 10 sec |
| Gate width* | up t0 100 cm | up to 150 cm |
| Features | for private use | for gates with rising hinges. Also for public places |
| Maintenance | no maintenance required | no maintenance required |
| Mounting | fast and simple mounting | fast and simple mounting |
| Montage bracket | GTS 120/170 | GTS 180/170 |
| Material | aluminium | stainless steel |
| Colour | anodized aluminium | anodized aluminium, antracite (RAL 7016), green (RAL 6005), black (RAL 9005) |
| Montage bracket gate | 30mm | 60mm |
| Montage bracket post/wall | 60mm, 90mm oder 120mm | 80mm oder 120mm |
| Universal mounting plate | 150mm | 150mm |
*The width of the gate is a guide. It is possible to install our models on larger gates. Send us photos of your gates with the dimensions and we will be happy to advise you.
.
Which bracket to choose for the GTS 120/170?
Once you've decided on your model, all you have to do is choose the right mounting bracket.
This model comes with a 30mm bracket that needs to be attached to the gate.
You have four options for attaching to the adjacent wall or post:
- the 60 mm square
- the 90 mm square
- the 120mm square
- the 60 mm bracket with the universal mounting plate.
To find out which bracket is best for your gate, have a look at the hinges.

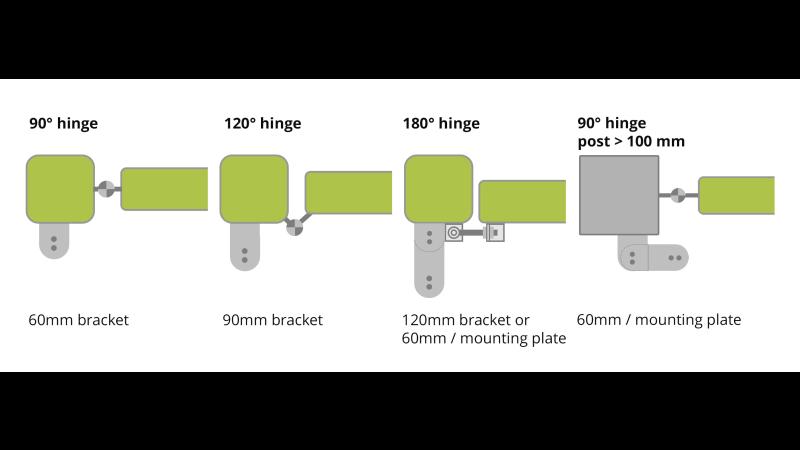

The diagram below shows the most commonly used hinges and the right bracket for the appropriate assembly.
If none of these diagrams correspond to your installation, please provide us with a photo of your gate. We will respond with a satisfying solution as soon as possible.
Which bracket to choose for the GTS 180/170?
Once you've decided on your model, all you have to do is choose the right mounting bracket.
This model comes with a 60mm bracket that needs to be attached to the gate.
You have three options for attaching to the adjacent wall or post:
- the 80 mm square
- the 120 mm square
- the 80 mm bracket with the universal mounting plate.
To find out which bracket is best for your gate, have a look at the hinges.

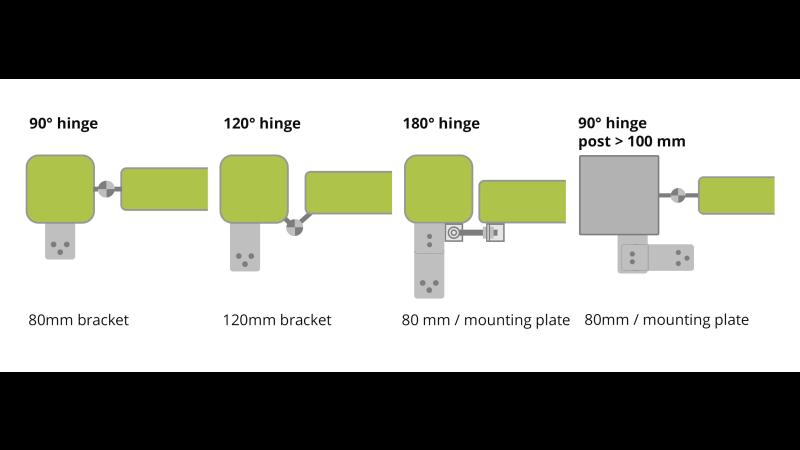

The diagram below shows the most commonly used hinges and the right bracket for the appropriate assembly.
Of course, we stay at your disposal and if you have any questions or remarks, do not hesitate to contact us.
